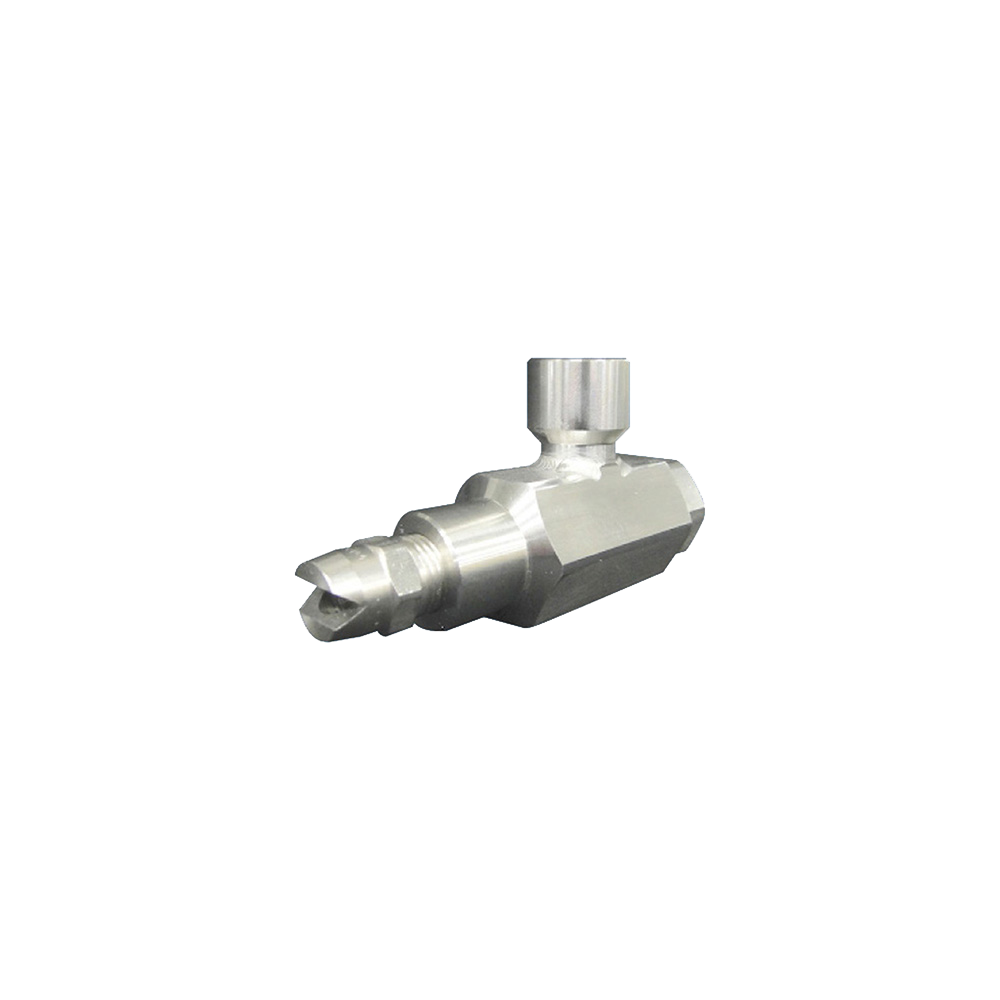

Ultra-low pressure fine fog flat spray
BAVV series
Features
The BAVV series nozzles’ features:
- Flat spray pneumatic nozzle producing fine atomization with a mean droplet diameter of 40 μm or more (*3).
- Energy-saving for blower-use. Low running cost.
- Clog-resistant design due to large free passage diameter.
*1) Spray angle measured at both air and liquid pressure of 0.02 MPa (ca. 0.2 bar).
*2) Free passage diameter of nozzle orifice.
*3) Measured by Laser Doppler Method.
Thread standard
-
Pipe conn. size
Liquid inlet: R 1/4", Air inlet: Rc 3/8"
Standard pressure
-
Spray angle
60° (*1)
Spray capacity
9.0 - 123 L/hr
Supply air type
Blower air
Liquid feeding system
Liquid pressure
Mean droplet diameter
40 - 100 μm (*3)
Air consumption
76 - 254 L/min, Normal
Air pressure
0.02 MPa (ca. 0.2 bar)
Free passage diameter
2.5 - 4.7 mm (*2)
Applications
The BAVV series nozzles have multiple applications:
- Cleaning: Liquid crystal, glass substrate, printed circuit boards
- Cooling: Steel plates
- Dust suppression: Raw material conveyor line
- Moisture control: Paper making
