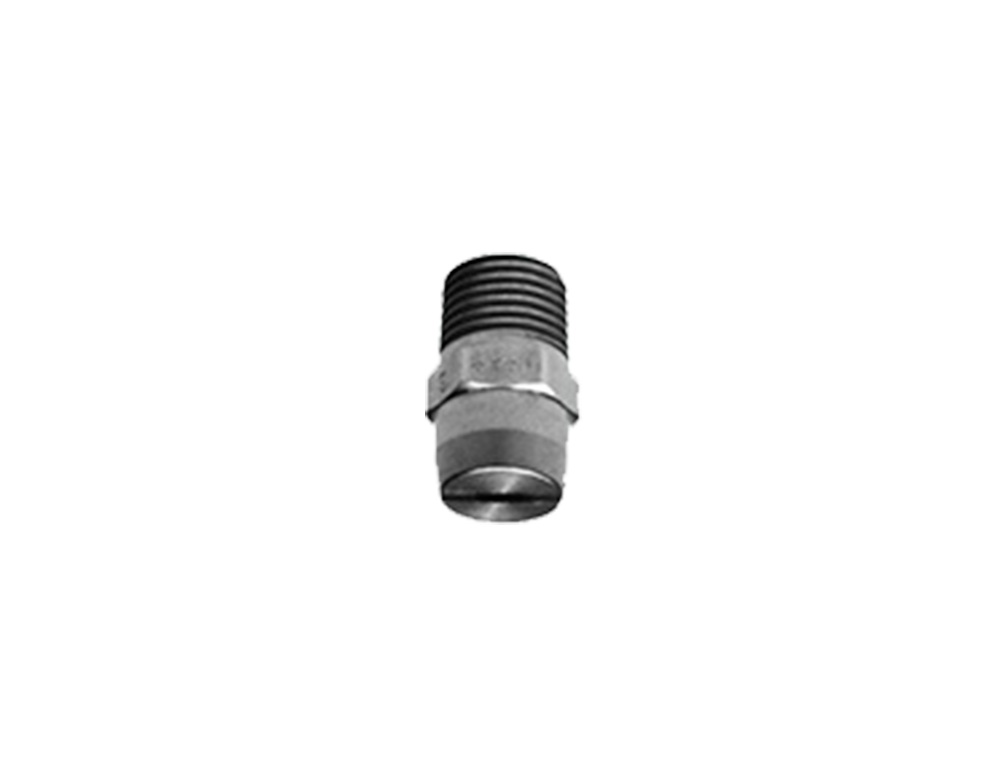

Thick flat spray with even distribution
WVVEP series (Made-to-order)
Features
The WVVEP series nozzles’ features:
- Thick flat spray nozzles with even distribution providing high spray impact and large spray area.
- Minimal clogging due to large free passage diameter and simple structure.
Pipe conn. size
R 1/4" - R 1/2"
Spray angle
65 - 90°
Mean droplet diameter
400 - 670 μm
Strainer
Not included
Standard pressure
0.3 MPa (ca. 3 bar)
Spray capacity
12.0 - 60.0 L/min
Air consumption
-
Free passage diameter
1.6 - 4.5 mm
Applications
The WVVEP series nozzles have multiple applications:
- Cooling: Rolls, steel plates, rolled steel sheets, casted steel
- Uniform cleaning in the spray thickness direction
